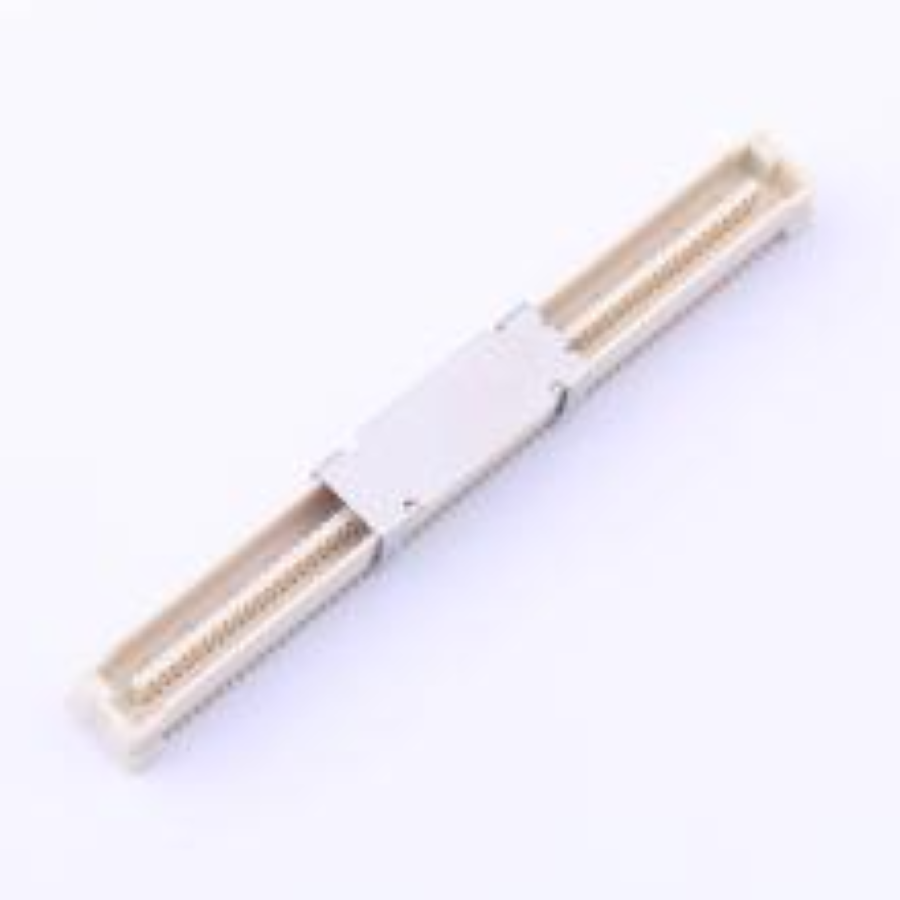

X0802WVS-60AS-LPV01
Manufacturer:
XKB Connectivity
Mfr.Part #:
X0802WVS-60AS-LPV01
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:60 Number of Rows:2 Row Spacing:2 mm Pitch:0.8 mm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Contact Plating | Gold Flash |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 0.8 mm |
| Current Rating | 500 mA |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Plastic |
| Stack Height | 5.6 mm |
| Mounting Angle | Straight |
Stock: 2982
Distributors
pcbx
pcbxUnit Price$0.93571
Ext.Price$0.93571
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93571 | $0.93571 |
| 10 | $0.82819 | $8.28190 |
| 25 | $0.76595 | $19.14875 |
| 50 | $0.70839 | $35.41950 |
| 100 | $0.65514 | $65.51400 |
| 300 | $0.63933 | $191.79900 |
| 500 | $0.62390 | $311.95000 |
| 1000 | $0.60897 | $608.97000 |
